Cone Crusher

Cone crusher is a kind of main stone crusher for crushing aggregates, which is widely used in many industries such as mining, metallurgy, building materials, and chemical field. It is often applied in the sand and stone production line to be the secondary crushing equipment. Cone crusher of HXJQ Machinery has many advantages, such as large crushing force, long service life of vulnerable parts, high production efficiency and so on.

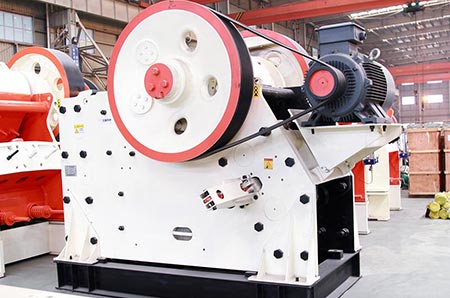

Fixed Jaw Crusher

Click and roll the mouse for a full view of panorama

icon

High crushing ratio

Advanced and reliable, to ensure large processing capacity.

icon

High efficiency, low energy consumption

The degree of automation is high, which adopts the PLC+touch screen automation control system.

icon

Uniform particle size

Intelligent and automatic design to meet the requirements of feeding.

icon

Extensive adaptability

Each model of cone crusher has a variety of cavity types to choose from.

cone crusher

cone crusher

cone crusher

cone crusher

cone crusher

  • cone crusher
  • cone crusher
  • cone crusher
  • cone crusher
  • cone crusher

What is the cone crusher? Let’s explore it in detail

Hongxing cone crusher: A crushing machine suitable for raw materials in the metallurgy, construction, road construction, chemical, and silicate industries. According to the different crushing principle and different product particle size, it is divided into many models. Hongxing Machinery(HXJQ Machinery/China Hongxing ) is cone crusher's  manufacturer and Supplier. Regarding the model of the cone crusher, there is no uniform regulation on the market, but within the multiple types of cone crusher, there are mainly five types. We export cone crushers include Hydraulic cone crusher, single- cylinder hydraulic cone crusher, Symons cone crusher, full hydraulic cone crusher, and multi-cylinder hydraulic cone crusher. The cone crusher is widely used in many sectors such as mining, smelting, building materials, roads, railways, water conservancy, and chemical industries.The cone stone crusher has a large crushing ratio, high efficiency, low energy consumption and uniform product size. It is suitable for medium and fine crushed ores and rocks. (Note: The cone crusher machine of Hongxing Machinery is different from the jaw crusher, impact crusher, and other stone crushers)

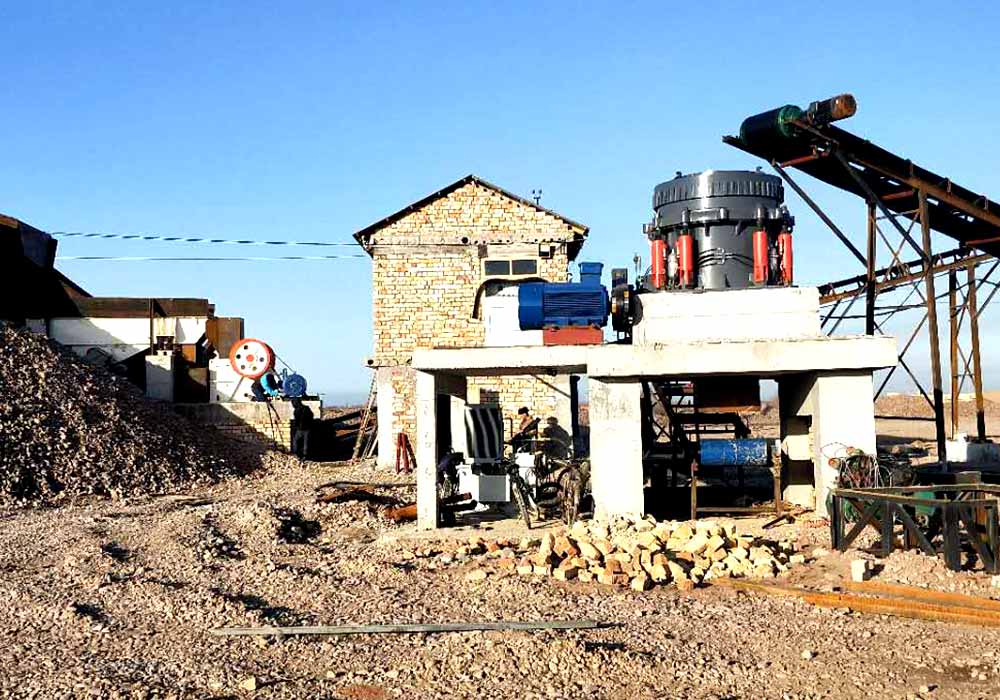

The Hongxing Machinery cone crusher can be used in highway building

China Hongxing cone stone crusher

-Welcome to the world of cone crusher equipment

As we all know, HXJQ series cone crusher is the equipment by introducing and absorbing foreign technology, combining with market demand, and developing the cone crushers on the basis of production practice.

The equipment has a simple and smooth shape, small size, lightweight, and greatly improved production capacity. Besides, it has the features of rugged and durable maintenance, hydraulic adjustment and strong safety, convenient and reliable automatic control, simple operation, convenient maintenance, low wear, and be of cost-saving. For stone crushing plant, in addition to its high production capacity, easy operation and huge productivity, the cone crusher’s biggest characteristic is that it can crush stone material with excellent grain type while reducing the price.

The hydraulic cone crusher produced by Hongxing Heavy Machinery is a newly developed crushing equipment with advanced high power, high productivity and large crushing ratio.

  • Output: 12-1000t/h
  • Feeding granularity: 35-300mm
  • Discharge size: 3-60mm

The machine has a wide range of features with great crushing capacity, stable operation, uniform grain type, automatic hydraulic cleaning, high treatment capacity and the like. In short, the single-cylinder hydraulic cone crusher is a piece of ideal equipment suitable for medium and fine stone/rock crushing.

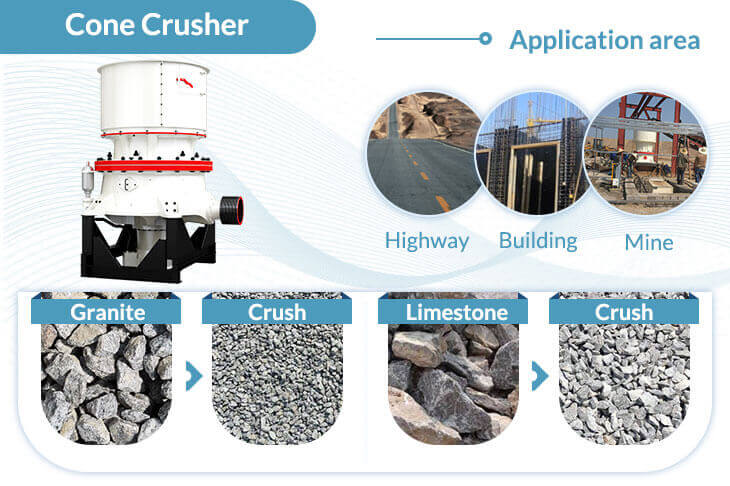

Materials and Application for Hydraulic Cone Crushers

The singe-cylinder hydraulic cone crusher can crush materials with the hard strength and the above, such as the iron ore, limestone, granite and so on.

Material

Cone Crusher Technical Specifications

Type Maximum Feeding Size (mm) Capacity (t/h) Power(kw) Adjustment range of discharge port(mm)
Singe-cylinder Hydraulic Cone Crusher
200-560
70-1050
90-315 10-25
Multi-cylinder Hydraulic Cone Crusher
60-326
72-1100
160-630 8-51
Full Hydraulic Cone Crusher
35-228
36-450
90-280 3-64
Compound Cone Crusher
35-228
27-635
75-250 3-64

The setting parts of single-cylinder hydraulic cone crusher

The settings of the single-cylinder hydraulic cone are mainly divided into six parts: (1) Upper frame assembly; (2) Lower frame assembly; (3) Mobile cone assembly; (4) Transmission shaft assembly; (5) Eccentric sleeve assembly; (6) Hydraulic cylinder assembly. The auxiliary part is composed of the electrical system and the dilute oil lubrication system.

The head spindle of singe-cylinder hydraulic cone crusher can rotate. Under the function of the hydraulic cylinder, if the spindle is lifting or falling, and then adjust the size of the discharging port. In contrast, the requirements of singe-cylinder hydraulic cone crusher for technology and material selection are more advanced and strict.

Cone crusher working principle or process:

When the portable cone crusher is working, the motor drives the eccentric shaft sleeve to rotate through a horizontal shaft and a pair of bevel gears.

The shaft line of the single-hydraulic cone stone crusher does the rotary movement under the force of eccentric shaft sleeve, so that the surface of the crushing wall is sometimes close to or off the surface of the rolling wall. Therefore, the material (gold ore, rock, stone, granite,etc.) is constantly squeezed and crushed in the crushing cavity.

The working principle of cone crusher

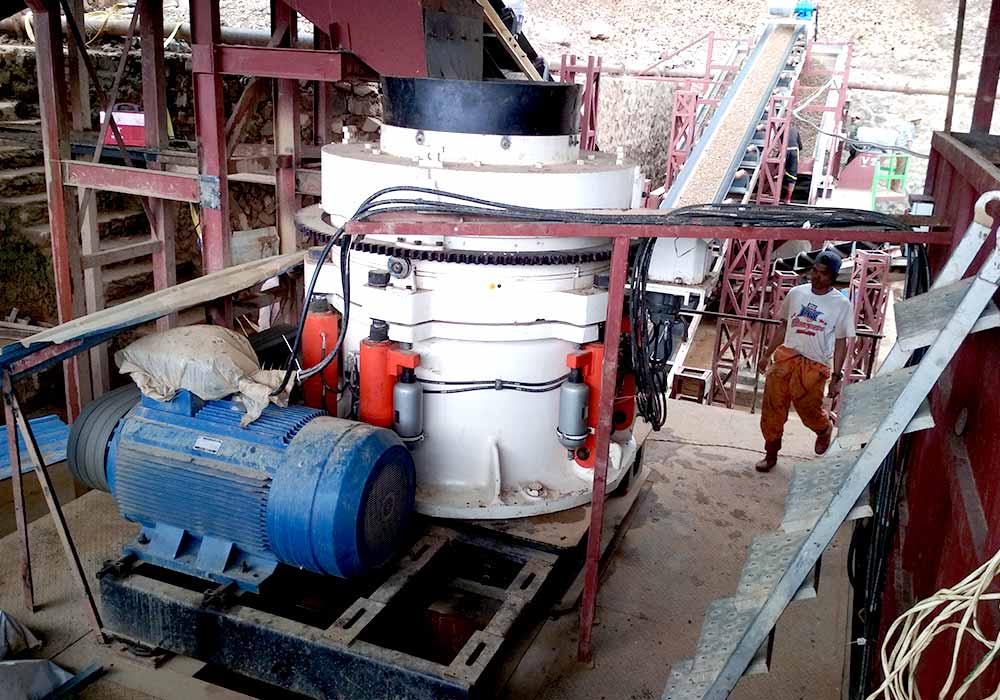

An example of China Hongxing cone crusher Application of SCS type

-Application of SC(S) type

The example shows that the Hongxing series SCS single-cylinder hydraulic cone crusher enjoys the feature with simple maintenance and convenient operation, and the equipment adopts advanced hydraulic metal, which realizes a better effect of overload protection and the discharging port of hydraulic adjustment. At the same time, SCS single-cylinder hydraulic cone crusher adopts the dilute oil for lubrication, which is both reliable and advanced, and improves the service life of the equipment. , suitable for medium crushing and fine crushing of all kinds of ore, rock, gold ore, stone, granite, etc. In short, the equipment of Hongxing Machinery cone crusher manufacturer can be attained by direct sales, which is different from many cone crusher manufacturers, HXJQ Company has complete models and products for sale and fast delivery, then if you are interested, you can leave a message or contact our salesman to get the latest price quote. You can also launch a investigation at the China Hongxing enterprise and help yourselves.

Contact information:

  • Tel : 0086-0371-63313738 / 0086-18039114854
  • Office Add : No.8, Tanxiang Road, Zhengzhou, Henan, China.
  • E-mail:query@hxjq.com
